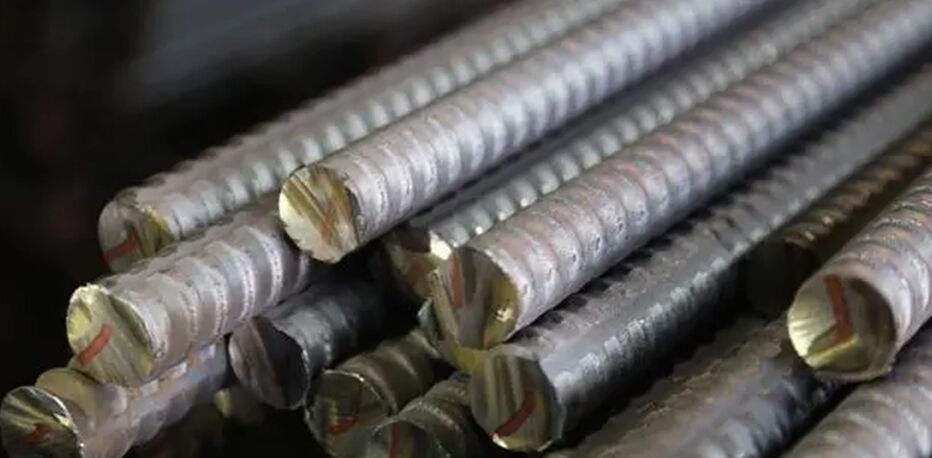

B500C Rebar

E-mail：info@qiyuansteel.com

WhatsApp/WeChat/Mobile：+86 18963099130

Certification : CE, ISO, SGS，BV，Mill Certificate
Standard : ASTM，JIS，GB，DIN，EN

Design Style : Customizable

Delivery Time : 7-10Days

E-mail

Contact us

Product parameters

The Differences Between B500A, B500B, and B500C

The differences between the A, B and C designations are complex and relate to structural tolerances. For reinforcement mesh products, grade B500A steel is typically used, and for rebar, B500B is used. B500C steel is seldom requested and it would always be worth checking with a structural engineer whether grade B500B could be used instead of B500C, since B500C typically has a significant cost overhead.

Welded steel type	B500A	B500B	B500C
Area	smooth, dented, ribbed	dented, ribbed	ribbed
Delivery form	coils, bars, spot-welded reinforcement mesh, lattice girders		coils, bars, spot-welded reinforcement mesh
Nominal centerline [mm]	4 – 16	6 – 50	6 – 50
Min. flow / yield limit Re [Mpa]	500	500	500
Min. flow / yield limit Re [Mpa]	500	500	Re, act / Re, nom <1.25
Min. Rm / Re ratio	1.05a	1.05	1.15c; <1.35
Min. elongation at max load Agt [%]	3.0a, b	5.0b	7.5b, c
Min. fatigue strength 2σad [MPa]	100	d ≤ 28 mm: 175	d ≤ 28 mm: 175
Min. fatigue strength 2σad [MPa]	100	d> 28 mm: 145	d> 28 mm: 145
Min. shear force
			0.25 x An x Renvt
	0.25 x An x Re 0.25 x A 0 / b x Re 10 / b	0.25 x An x Re 0.25 x A 0 / b x Re 10 / b
	or 0.6 x Ad x Re, d	or 0.6 x Ad x Re, d
Tolerance nominal centerline [%]	+/- 4.5	+/- 4.5	+/- 4.5
Chem. composition [mass%]	C <0.22, etc	C <0.22, etc	C <0.22, etc
Chem. composition [mass%]	Ceq <0.50	Ceq <0.50	Ceq <0.50
Min. relative opp. cross rib (dent), fr / pf	d = 4.0 – 6.0: 0.039 d = 9.0 – 10.5: 0.052
Min. relative opp. cross rib (dent), fr / pf	d = 6.5 – 8.5: 0.045 d = 11.0 – 50: 0.056
a) Rm / Re1.03 and Agt 2.0 for center lines ≤ 5.5 mm
b) Agt for coils + 0.5%
c) Rm / Re min. 1.13 and Agt 7.0% for center lines ≤ 12 mm
d) Maximum voltage ripple 2σa with upper voltage 0.6Rek (300 MPa) and 1 million voltage changes. For spot welded reinforcement mesh B500B and B500C, 2σa is at least 100 MPa. For coil-oriented products, 2σa is at least 100 MPa, unless a higher value (≤ 175 MPa) is statistically demonstrated for the maximum diameter used and for the targeting machine (type) concerned.
e) For lattice girders, the lower bars must comply with B500A and / or B500B with the fR / P requirement. The upper bars and diagonals may be reinforcing steel with only the requirements of Re, d and the chemical composition.
f) For coils fR (ribbed) + 15%, fP (dented) + 5%. No requirement for weakly profiled / dented reinforcing steel (lattice girders).

Product Name	Steel Rebars,Rebar
Material	HRB400,HRB400E,HRB500,HRB500E,ASTM A53 GrA,GrB; STKM11,ST37,ST52, 16Mn
Size	6mm,8mm,10mm, 12mm, 13mm, 14mm, 16mm, 20mm, 22mm, 25mm, 30mm, 32mm, 40mm,50mm
Length	5m-14m,5.8m,6m,10m-12m,12m or as customer's actual reques
Standard	BS4449-2005,GB1449.2-2007,JIS G3112-2004, ASTM A615-A615M-04a,
Grade	Grade A, Grade B, Grade C
Section Shape	Spiral Shap,Herringbone Shap,Crescent Shap
Technique	Steel Rebar Iron Rod
Packing	Bundle, or with all kinds of colors PVC or as your requirements
Ends	Plain end/Beveled,protected by plastic caps on both ends, cut quare,grooved,threaded and coupling,etc.
Surface Treatment	1. Galvanized
	2. PVC,Black and color painting
	3. Transparent oil,anti-rust oil
	4. According to clients requirement
Origin	Tianjin OF China
Delivery Time	Usually within 7-15days after receipt of advance payment

The factory to show

Product warehouse

The company has sufficient inventory and complete varieties and specifications. In line with the low price, quality first sales principle, let customers buy at ease, with comfortable! Integrity, professional, efficient is our service purpose, we will be dedicated to provide new and old customers with excellent products and quality service, also wholeheartedly welcome new and old customers to call, letter, come to negotiate business, guidance work!

Product delivery

standard export packing (inside:water proof paper,outside:steel covered with strips and pallets)

20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)

40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)

40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High)
